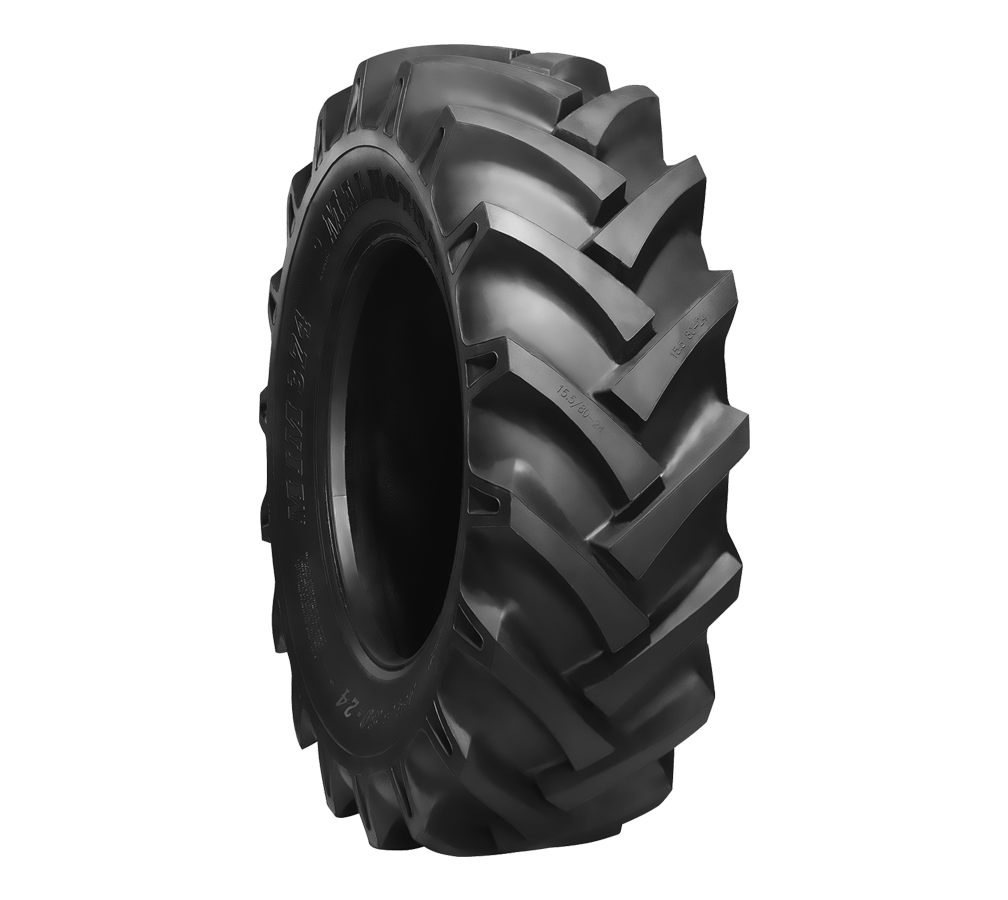

405/70-24 14 PR MRL MIM 374 159A6/155A8 R-1 TL

Description

With a state of the art manufacturing facility in India, MRL produces solutions for applications including agricultural tyres, industrial tyres, OTR tyres and commercial tyres. Representing more than a value choice, MRL tyres are produced using the latest in tyre production techniques and are now accepted with many major OEMs. A continuously expanding production base has allowed for a comprehensive product range with over 1800 SKUs now exported to more than 90 countries worldwide.

Features

  • Multi-angled and bold lug-bars for service durability and self cleaning.
  • Suitably designed lug bar spacing for comfort drive & added traction.
  • Strong and sturdy body plies for longer service durability.
  • Tread contact patch with broader lugs for heavy duty prime-movers.

Specification

Application
PLANT
Size
405/70-24
Equivalent Size 1
16.0/70-24
Brand
MRL
Pattern
MIM 374
Load/Speed Index
159A6/155A8
Ply Rating
14
TT/TL
TL
Construction
BIAS
Nominal Section Width
405
Profile
70
Rim
24
TRA
R-1
Recommended Rim
13
Section Width
405 mm
Overall Diameter
1180 mm
Static Load Radius
535 mm
Rolling Circumference
3487 mm
Tread Depth
31.00 mm
Max Load (KG)/Speed (KM/H) 1
4375/30
Max Load (KG)/Speed (KM/H) 2
3875/40
